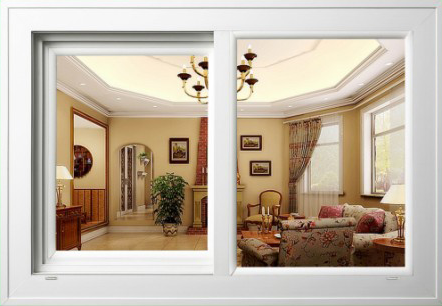

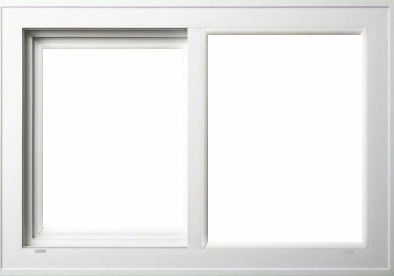

Vinyl Sliding Window

5044412
This horizontal sliding window's smooth operation is obtained with few moving parts. It's low maintenance, easy to clean surfaces that are supported by durable all welded construction frame in a design that protects a home's interior from all types of weather. It works very well as a window replacement, and also has nail fin frame for new construction. It is tested by AAMA and NFRC and are Energy Star Approved and Rated.
Was: $290.00
Sale: $70.00

Customize Your Item

- Inches -
 * required
- Fraction -
- Inches -
 * required
- Fraction -
- Glass Type -
- Select Grid Options for vinyl wi -
- Fin Type -
- Color -
- lock -
- Side the window opens -
- Installation Option -
 * required
- Window Screen -
Qty:

Description

vinyl sliding window brochure

Features Include:

  • Reinforced interlocking panels provide structural support and increase strength and security. This feature will insure a precise closing and locking process.

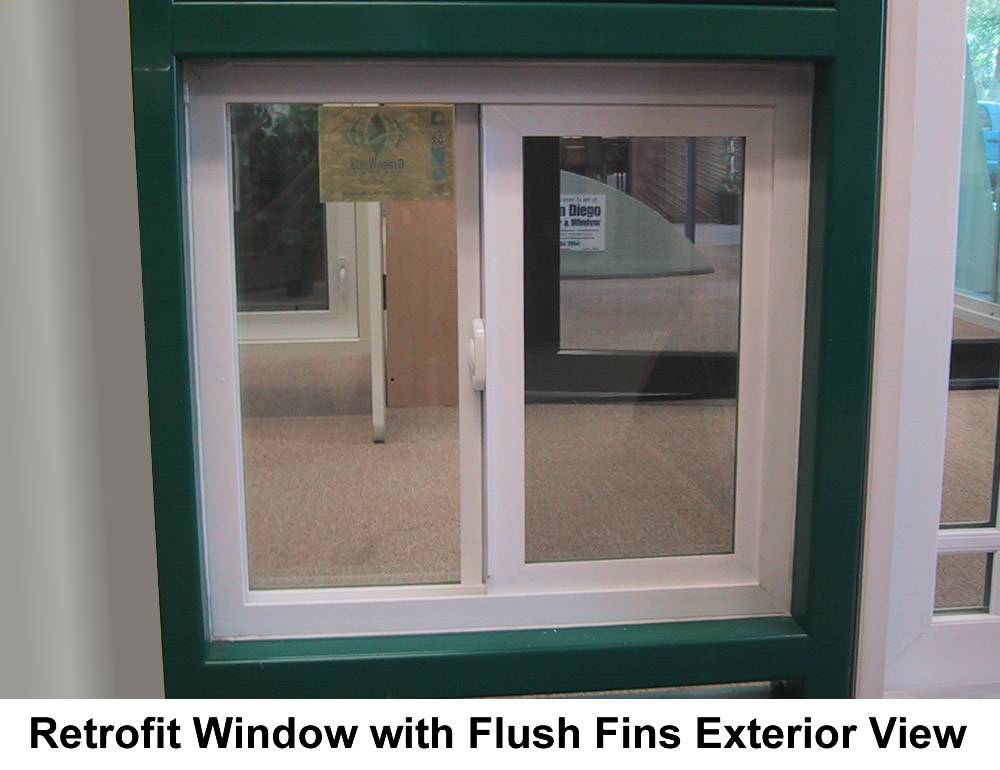

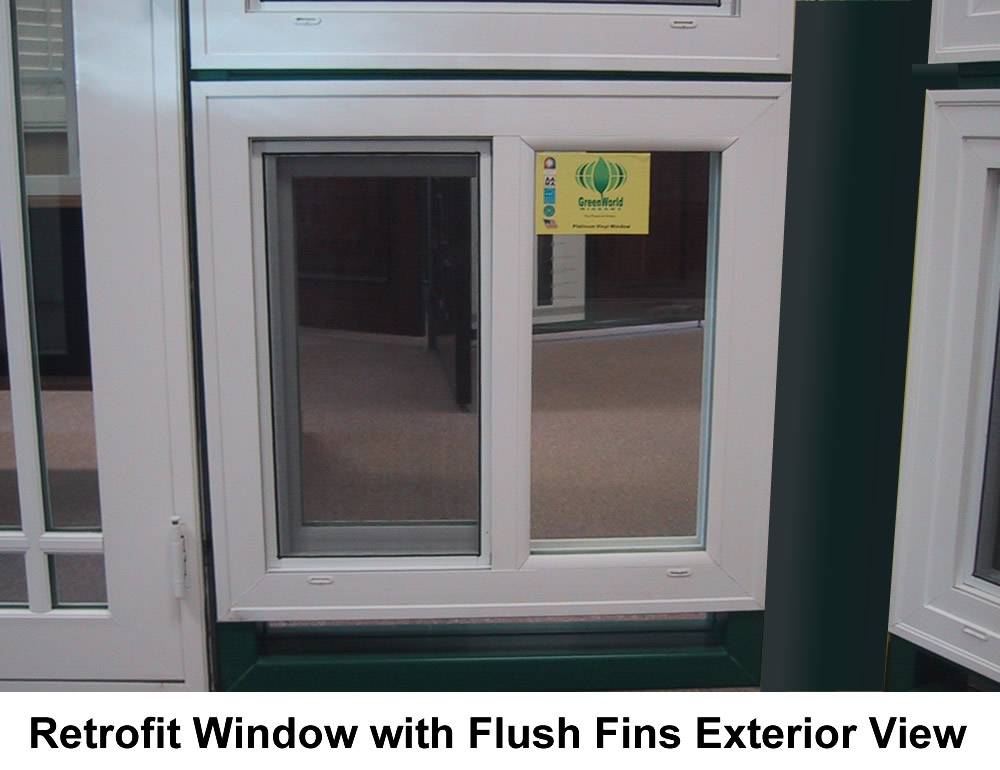

  • Dual wall flush fin option available for custom sized retrofit window replacement.
  • Nail-on fin option available for new construction. It is designed to accept 7/8' stucco set back. This allows the exterior of the window to finish evenly with the exterior of the house.
  • The 1/8' stucco key eliminates the separation of stucco against the window's perimeter.
  • Fusion welded corners on both frame and panel profiles eliminate the possibility of leaks and minimize air and water infiltration.Welding insures that corners will be permanently square and structurally strong.
  • All insulated glass has standard 3/4' overall thickness for increased thermal performance.
  • Auto Lock option ensure the window is secure when ever it is closed. Cam lock option insures a weather tight seal and exceeds all forced entry resistance requirements.
  • Snap-in vinyl bead on both fixed and sliding panels allows for easy replacement of glass.
  • Heavy duty brass tandem rollers slide over a replacement snap-in sill track for years of easy smooth operation.
  • XOX available up to 8' wide.


Energy Efficiency

Stay cool in the summer and warm in the winter. This window features Low-E Glass, which is ideal for San Diego weather. It reduces heat gain in the summer by reflecting warm solar rays. It also keeps the interior temperature stable by providing insulation, keeping the heat in during the winter.

low e glass

Between the 2 layers of glass is our “Warm Edge” High Performance spacer system which is engineered to flex with the expansion and contraction of the glass to keep it from breaking or rupturing the seal.


The “Warm Edge” spacer also dramatically reduces condensation. All of our windows meet or exceed the Federal standards for Energy Star when equipped with Low E glass. Low E glass also reduces the harmful UV rays that are allowed into the house, which will reduce the fading of furniture and Carpets by 75%.


Measurement Information

Frame width and height does not include flush fin size. The frame size should be 3/8ths less than the rough opening the window will be going into. To learn how to get an accurate frame measurement for your replacement window, click here.



Custom Quote

If you need assistance in any way, or would like to receive a custom quote with specific features, Call or E-mail us to speak with a sales representative. We are capable of placing orders with more customization and options than shown here at the lowest price on the internet.

Phone: (858) 537-1635
Email:



Contact Form

Use this form to contact us with questions, comments, or feedback:

Name * Email *

Message *



Helpful Information



Glass Options Available

Obscure glass gives privacy and style for windows and doors throughout your home, and is ideal for locations requiring more privacy such as bathrooms.

glass

Additional Glass Options

  • Tempered Tempered glass is extremely strong and often used for its safety characteristics. Not only is it extra strong, but when it breaks, it cracks into thousands of pieces rather than breaking into sharp jagged edges that can harm. Of course, this makes for a much difficult clean up, but it is worth it for the safety component.

  • Laminated Laminated glass is highly effective in reducing noise. It also eliminates 99.9% of ultraviolet rays, providing the highest degree of protection from the sun for your home furnishings. Concerned about excessive outdoor noise?

  • Argon/Air Mix Optional argon gas, used between panes, is also available to further improve thermal performance



Details

  • 5044412
